API SPEC 5CT |
Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
Casting | API 5CT | 114~219 x WT5.2~22.2 | J55, K55, N80, L80, P110 |
Tubing | API 5CT | 48.3~114.3 x WT3.2~16 | J55, K55, N80,L80, P110 |
|
|
|
|
API SPEC 5L |
Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
Line Pipes | API 5L | 10.3~1200 x WT1.0~120 | A, B, X42, X46, X52, X60, X70, X80, PSL1 / PSL2 |
|
|
|
|
ASTM / ASME |
Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |

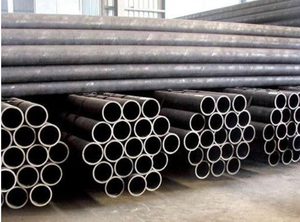

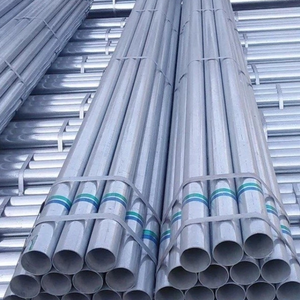

Black and Hot-Dipped Zinc-Coated Seamless Steel Pipes | ASTM A53 | 10.3~1200 x WT1.0~150 | Gr.A, Gr.B, Gr.C |
Seamless Carbon Steel Pipes for High Temperature Service | ASTM A106 | 10.3~1200 x WT1.0~150 | Gr.B, Gr.C |
Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes | ASTM A179 | 10.3~426 x WT1.0~36 | Low Carbon Steel |
Seamless Carbon Steel Boiler Tubes for High Pressure | ASTM A192 | 10.3~426 x WT1.0~36 | Low Carbon Steel |
Seamless Cold-Drawn Intermediate Alloy Steel Heat-Exchanger and Condenser Tubes | ASTM A199 | 10.3~426 x 1.0~36 | T5, T22 |
Seamless Medium-Carbon Steel Boiler and Superheater Tubes | ASTM A210 | 10.3~426 x WT1.0~36 | A1, C |
Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes | ASTM A213 | 10.3~426 x WT1.0~36 | T5, T9, T11, T12, T22, T91 |
Seamless Carbon and Alloy Steel for Mechanical Tubing | ASTM A333 | 1/4"~42" x WT SCH20~XXS | Gr.1, Gr.3, Gr.6 |
Seamless and Welded Carbon Steel Pipes and Alloy Steel Pipes for Low Temperature Use | ASTM A334 | 1/4"~4" x WT SCH20~SCH80 | Gr.1, Gr.6 |
Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes | ASTM A556 | 10.3~426 x WT1.0~36 | A2, B2 |
|
|
|
|
DIN |
Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
Seamless Steel Tubes for Elevated Temperature | DIN 17175 | 10~762 x WT1.0~120 | St35.8, St45.8, 10CrMo910, 15Mo3, 13CrMo44, STPL340, STB410, STB510, WB36 |
Seamless Steel Tubes | DIN 1629 / DIN 2391 | 13.5~762 x WT1.8~120 | St37.0, St44.0, St52.0, St52.3 |
Seamless Steel Tubes | DIN 2440 | 13.5~165.1 x WT1.8~4.85 | St33.2 |
Seamless Steel Pipes for Structural Purpose | DIN 2393 | 16~426 x WT1.0~36 | RSt34-2, RSt37-2, RSt44-2, St52 |
|
|
|
|
BS |
Product Name | Executive Standard | Dimension (mm) | Steel Code / Steel Grade |
Seamless Steel Tubes for Machine Structure | BS 970 | 10~762 x WT1.0~120 | Carbon Steel |
Seamless Steel Tubes for Boiler and Heat Exchangers | BS 3059 | 10~762 x WT1.0~120 | 360, 410, 440, 460, 490 |
