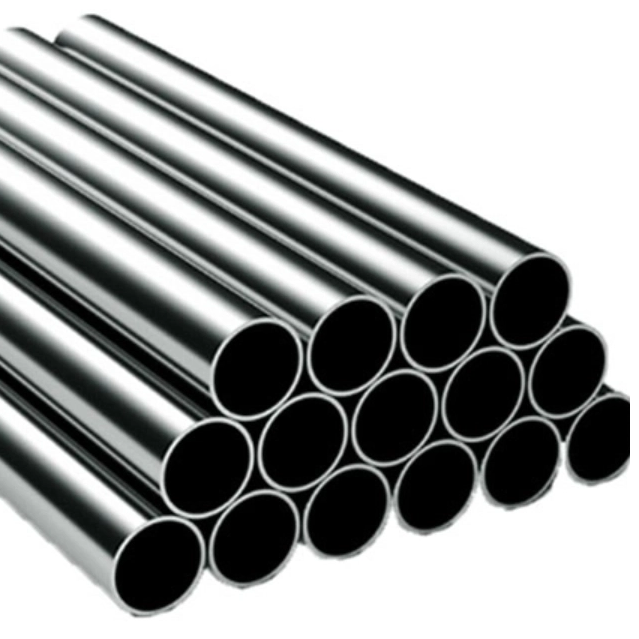

Stainless Steel seamless Pipe


Availability:

Quantity:

Inquire Add to Basket

Size: OD: 3-2400 mm
WT: 1.0-140 mm
LENGTH: 5.8/6/11.8/12m
Pipe Standard: ASTM A213, ASTM A269, ASTM A312, ASTM A789, JIS G3459
Material: 304,304L,310/S,310H,316,316L,321,321H
Process: Cold drawn, Precision Rolled, Pickling
Finish: Annealed & pickled, bright annealing, polished

Product Description

STM A213/SA213, ASTM A312/SA312, ASTM A789
Austenitic		Ferritic & Martensitic	Ferritic / Austenitic
TP 304	TP 316H	TP 405	S32900
TP 304L	TP 316Ti	TP 410	S31803
TP 304H	TP 321	TP 430	S32205
TP 310S	TP 312H		S32750
TP 310H	TP 347		S31500
TP 316	TP 347H
TP 316L

Stainless steel pipe (ss pipe) dimension as per astm & weight

Nominal		Outside Diameter	Sch 5S		Sch 10S		Sch-40S		Sch-80S		Sch-160S		Sch-XXS
mm	inch	mm	WT mm	Weight (Kg/mt)	WT mm	Weight (Kg/mt)	WT mm	Weight (Kg/mt)	WT mm	Weight (Kg/mt)	WT mm	Weight (Kg/mt)	WT mm	Weight (Kg/mt)
3	1/8	10.3	1.24	0.276	1.24	0.28	1.73	0.37	2.41	0.47	-	-	-	-
6	1/4	13.7	1.24	0.390	1.65	0.49	2.24	0.631	3.02	0.80	-	-	-	-
10	3/8	17.1	1.24	0.490	1.65	0.63	2.31	0.845	3.20	1.10	-	-	-	-
15	1/2	21.3	1.65	0.800	2.11	1.00	2.77	1.27	3.75	1.62	4.75	1.94	7.47	2.55
20	3/4	26.7	1.65	1.03	2.11	1.28	2.87	1.68	3.91	2.20	5.54	2.89	7.82	3.63
25	1	33.4	1.65	1.30	2.77	2.09	3.38	2.50	4.55	3.24	6.35	4.24	9.09	5.45
32	1 1/4	42.2	1.65	1.65	2.77	2.70	3.56	3.38	4.85	4.47	6.35	5.61	9.70	7.77
40	1 1/2	48.3	1.65	1.91	2.77	3.11	3.68	4.05	5.08	5.41	7.14	7.25	10.16	9.54
50	2	60.3	1.65	2.40	2.77	3.93	3.91	5.44	5.54	7.48	8.74	11.1	11.07	13.44
65	2 1/2	73.0	2.11	3.69	3.05	5.26	5.16	8.63	7.01	11.4	9.53	14.9	14.2	20.39
80	3	88.9	2.11	4.51	3.05	6.45	5.49	11.30	7.62	15.2	11.1	21.3	15.24	27.65
100	4	114.3	2.11	5.84	3.05	8.36	6.02	16.07	8.56	22.3	13.49	33.54	17.12	41.03
125	5	141.3	2.77	9.47	3.40	11.57	6.55	21.8	9.53	31.97	15.88	49.11	19.05	57.43
150	6	168.3	2.77	11.32	3.40	13.84	7.11	28.3	10.97	42.7	18.2	67.56	21.95	79.22
200	8	219.1	2.77	14.79	3.76	19.96	8.18	42.6	12.7	64.6	23.0	111.2	22.23	107.8
250	10	273.1	3.40	22.63	4.19	27.78	9.27	60.5	12.7	96.0	28.6	172.4	25.40	155.15
300	12	323.9	3.96	31.25	4.57	36.00	9.52	73.88	12.7	132.0	33.32	238.76	25.40	186.97
350	14	355.6	3.96	34.36	4.78	41.3	11.13	94.59	19.05	158.08	35.71	281.70	-	-
400	16	406.4	4.19	41.56	4.78	47.29	12.7	123.30	21.41	203.33	40.46	365.11	-	-
450	18	457.2	4.19	46.80	4.78	53.42	14.27	155.80	23.8	254.36	45.71	466.40	-	-
500	20	508.0	4.78	59.25	5.54	68.71	15.09	183.42	26.19	311.2	49.99	564.68	-	-
600	24	609.6	5.54	82.47	6.35	94.45	17.48	255.41	30.96	442.08	59.54	808.22	-	-

Weight & thickness of S.S guage pipes

Dimension		10 SWG(3.2MM)	12 SWG(2.6MM)	14 SWG(2.1MM)	16 SWG(1.65MM)	18 SWG (1.2MM)	19 SWG(1.0MM)
Size	OD	Weight/MTR	Weight/MTR	Weight/MTR	Weight/MTR	Weight/MTR	Weight/MTR
1/2"	12.7	0.754	0.651	0.552	0.452	0.342	0.290
5/8"	15.875	1.006	0.856	0.718	0.582	0.437	0.369
3/4"	19.05	1.258	1.061	0.883	0.712	0.531	0.448
1"	25.4	1.762	1.470	1.214	0.972	0.720	0.605
1 1/4"	31.75	2.266	1.880	1.544	1.232	0.909	0.763
1 1/2"	38.1	2.770	2.289	1.875	1.492	1.098	0.920
2"	50.8	3.778	3.108	2.537	2.012	1.476	1.235
2 1/2"	63.5	4.786	3.928	3.198	2.531	1.854	1.550
3"	76.2	5.794	4.747	3.860	3.051	2.232	1.865
3 1/2"	88.9	6.802	5.566	4.521	3.571	2.610	2.180
4"	101.6	7.810	6.385	5.183	4.091	2.988	2.495

Stainless Steel Seamless Pipe Tolerances

NPS Designator	Permissible Variations in Outside Diameter
NPS Designator	Over In.	Under In.
1/8 to 1-1/2, incl	1/64 (0.015)	1/32 (0.031)
Over 1-1/2 to 4, incl	1/32 (0.031)	1/32 (0.031)
Over 4 to 8, incl	1/16 (0.062)	1/32 (0.031)
Over 8 to 18, incl	3/23 (0.093)	1/32 (0.031)
