Stainless Steel Pipe

roduct Name

Executive Standard

Dimension

Steel Code / Steel Grade

Industrial Pipes

ASTM A312, A358, A778

OD: 1/4"~40"

TP304, TP304L, TP316L, SUS304TP

JIS G3459

WT: SCH5S~SCH80S

Tubes for Boiler and Heat-Exchanger, General Service Tubing

ASTM A249, A269, JIS G3463

OD: 15.9~139.8mm

TP304, TP304L, TP316L, SUS304TB

WT: 1.6~5.0mm

Mechanical and Structural Tubes

ASTM A554, JIS G3446

OD: 7.9~152.4mm

MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304

WT: 0.5~6.5mm

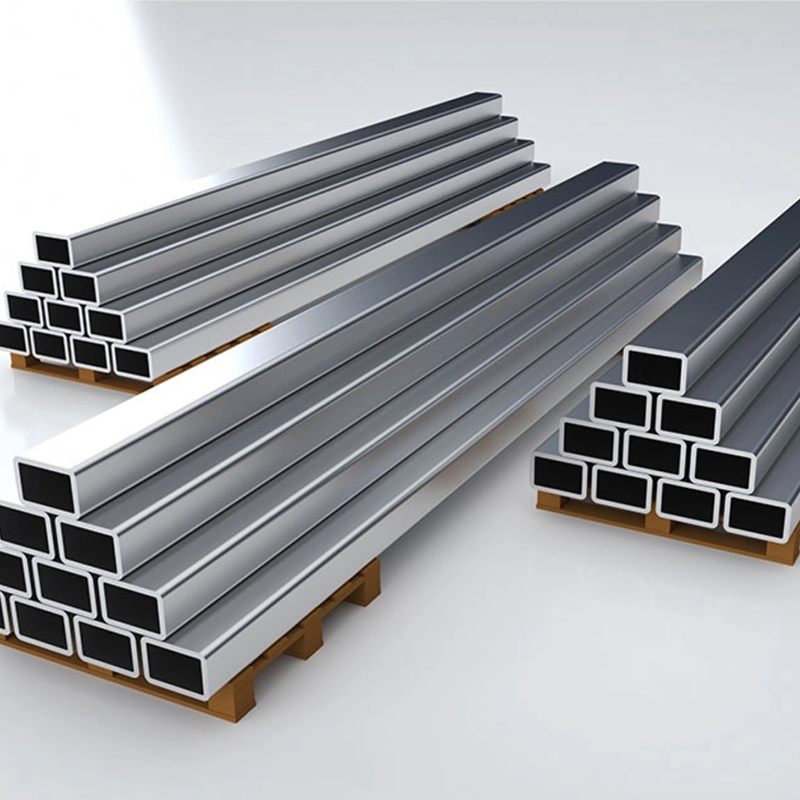

Square Tubes

ASTM A554

OD: 12.7x12.7~150x150mm

MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD

WT: 0.7~6.5mm

Rectangular Tubes

ASTM A554

OD: 10x20~100x200mm

MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD

WT: 0.7~6.5mm

Sanitary Tubing

ASTM A270

OD: 25.4~165.2mm

TP304, TP304L, TP316L, SUS304TBS

JIS G3447

WT: 0.8~3.05mm

Large Gauge Pipes for Ordinary Piping

JIS G3448

OD: 15.88~318.5mm

SUS304TPD

WT: 0.8~3.0mm

Large Diameter Pipes

JIS G3468

OD: 14"~40"

SUS304TPY

WT: SCH5S~SCH40S

Product Name

Executive Standard

Dimension

Steel Code / Steel Grade

Seamless Austenitic Stainless Steel Pipes

ASTM A312/A312M, ASME SA312/SA312M

OD: 6.0~914.0mm

TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H

WT: 0.5~88mm

Seamless Austenitic Stainless Steel Tubing for General Service

ASTM A269, ASME SA269

OD: 6.0~50.8mm

TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H

WT: 0.8~10.0mm

Seamless Austenitic Alloy-Steel Boiler, Super Heater and Heat-Exchanger Tubes

ASTM A213/A213M, ASME SA213/SA213M

OD: 6.0~50.8mm

TP304, TP304L, TP304H, TP310, TP310S, TP316, TP316L, TP316Ti, TP317, TP317L, TP321, TP321H, TP347, TP347H

WT: 0.8~10.0mm

Seamless Duplex Stainless Steel Tubing for General Service

ASTM A789 / A789M

OD: 19.0~60.5mm

S31803, S32205, S32750

WT: 1.2~5.0mm

Seamless Duplex Stainless Steel Pipes

ASTM A790 / A790M

OD: 3/4"~10"

S31803, S32205, S32750

WT: SCH5S~SCH80S

eamless Stainless Steel Mechanical Tubing

ASTM A511

OD: 6.0~50.8mm

MT304, MT304L, MT304H, MT310, MT310S, MT316, MT316L, MT317, MT317L, MT321, MT321H, MT347

WT: 1.8~10.0mm

Seamless Stainless Steel Tubes for Pressure Purposes

EN 10216, DIN 17456, 17458

OD: 6.0~914.0mm

1.4301, 1.4307, 1.4541, 1.4401, 1.4404, 1.4571, 1.4878, 1.4432, 1.4462

WT: 0.5~88mm
