Stainless steel is a great choice for home and commercial kitchen equipment, appliances, construction, engineering, and so on. If you're looking for a material that is corrosion-resistant, durable, and easy to maintain, stainless steel is the way to go.

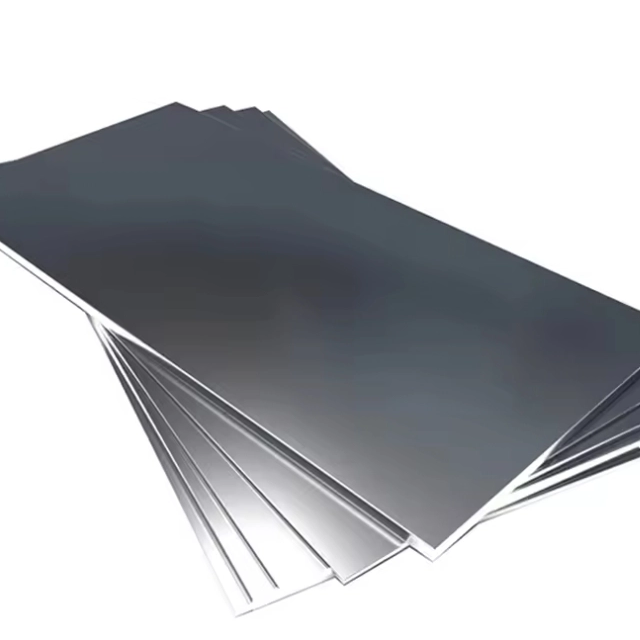

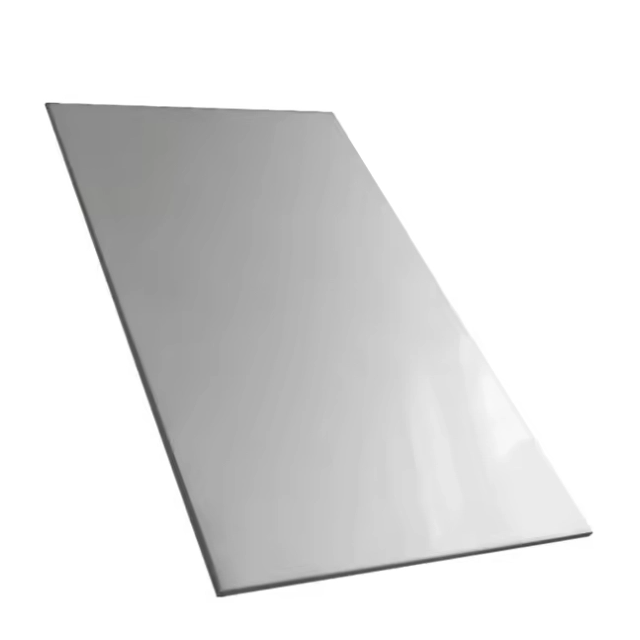

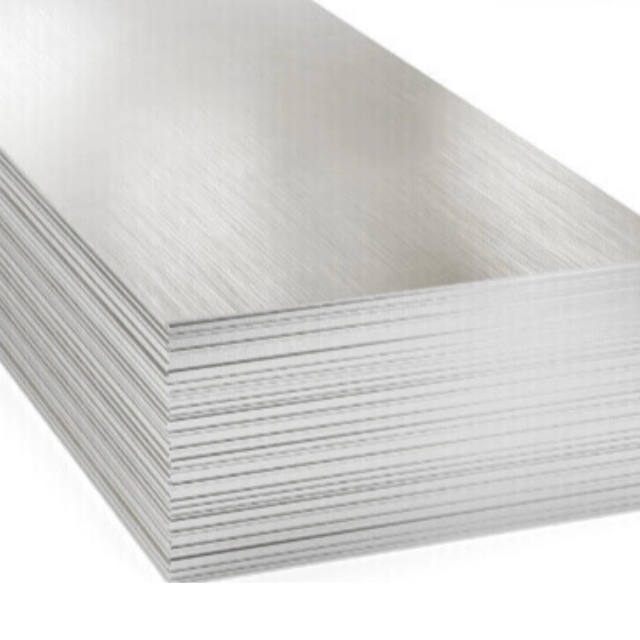

Items | Stainless Steel Plate |
Standard | ASTM A167, ASTM A176, ASTM A240, ASTM A693, ASTM A480 |
Size | Sheet(0.2mm-4mm) |
Slab(4mm-20mm) |
Thick plate(20mm-60mm) |
Special thick plate(60-115mm) |
Industrial
process | hot rolled, hot expanded, cold drawn, and hot galvanized |
| a) Outer Diameter:6-32mm:+/- 0.2mm, 32-38:+/-0.15mm, 42-60:+/-0.20mm,60mm:+/-0.25mm |
Tolerance | b) Thickness: +/- 10% |
| c) Length: +/- 5mm |
Chemical
Composition | Material | 201 | 202 | 304 | 316L | 430 |
|
|
C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 |
P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 |
S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 |
Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 |
Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 |
|
|
Mo |
|
|
| 2.0-3.0 |
|
Mechanical
Property | Material Item | 201 | 202 | 304 | 316 |
Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
Extension | ≥30% | ≥30% | ≥35% | ≥35% |
Hardness (HV) | <105 | <100 | <90 | <90 |
