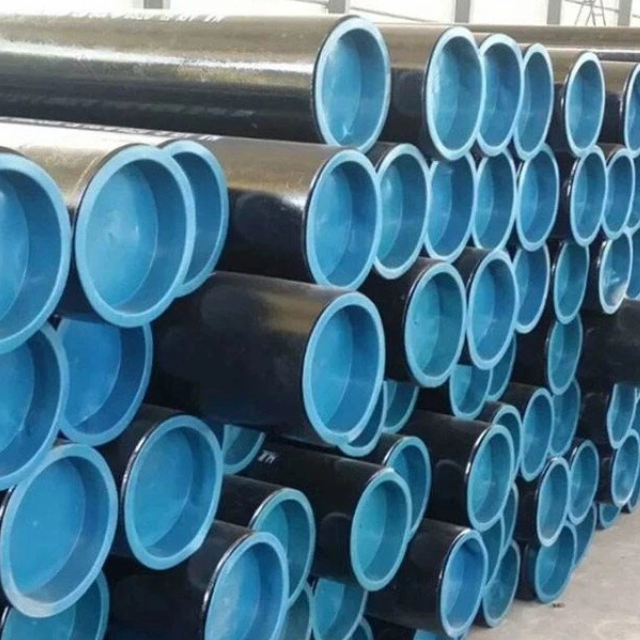

This API 5L Oil Line Pipe is made with seamless steel, and meets all API 5L standards for oil and gas industry use. It has high strength and excellent resistance to corrosion, making it ideal for use in harsh environments.
Its durability ensures long service life, and the precision manufacturing ensures a high-quality product.
Its wide range of dimensions and grades makes it suitable for a variety of applications in the oil and gas industry.
Specification
API 5L Pipe Specification | API 5L Hot Rolled. |
API 5L Pipe Grades | API 5L GRADE B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2 |
API 5L Pipe Type | Seamless |
API 5L Pipe Outer Diameter Size | 3/8" NB To 30" NB (Nominal Bore Size) |
API 5L Pipe Wall Thickness | Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
API 5L Pipe Length | 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size. |
API 5L Pipe Ends | Plain Ends / Beveled Ends / Coupling |
API 5L Pipe Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
API 5L Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
API 5L Pipe Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc. |
API 5L Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
API 5L Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galvanizing / Heat Treatment |
API 5L Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
API 5L Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet |
Coating
FBE – AWWA C210, AWWA213, AS/N2S 3862, CAN/CSA Z245.20 and etc.
3LPE – DIN30670, NFA49-710, ISO21809 IPS-G-TP-335 and etc.
3LPP – DIN30678, GS-GR-COR 221, ISO21809 and etc.
Application
· Oil and Gas Pipelines
· Water and Sewage Pipelines
· Mineral Slurry Pipelines
